Edco PCB1B-WKEY Installation

Signal Line Connections

  • Ground Terminal 1 OR 10 (internally tied together) to Building Approved Ground.
  • DO NOT daisy chain grounds.
  • NOT intended for shield termination.
  • Install ground in accordance with all applicable codes.
  • PCB1B-WKEY accommodates 26 to 10 AWG wire.

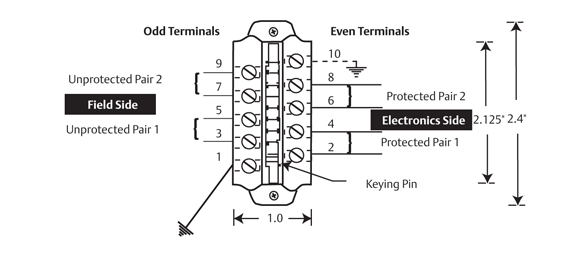

PCB1B-WKEY installation and wiring diagram

The PCB1B-WKEY base is included in the price of the PHC-036, PHC-043 series, PC642C-036, and SLCP-30.
