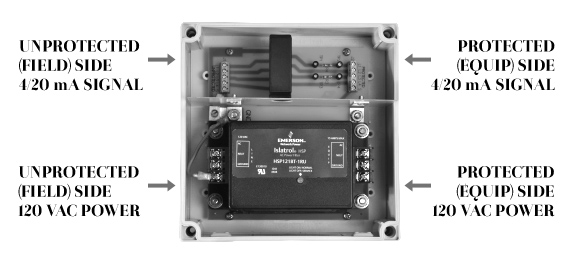

SLAC 12036 Installation

Signal Line Connections

• Connect GND Terminal to Local Ground using #12 AWG wire minimum
• L1 & L2 – Connect for Signal Pair #1
• L3 & L4 – Connect for Signal Pair #2
• Terminals accept #24-#14 AWG wire, torque to 4kg-cm
• "S" Connection for Cable Shield (if applicable)

CAUTION: Do not place this product in service on any signal line capable of supplying more than 150 milliamperes continuously.

AC Power Connections

• Connect AC Power as marked on case using #12 AWG wire minimum
• Keep 120 VAC Power feed separate from Low Voltage 4/20 mA feed

See additional details on the SLAC 12036 product page.
